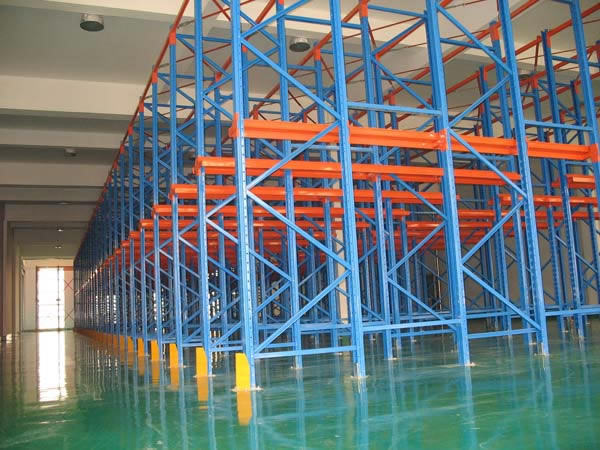

First: through shelf:

The through shelf is also known as the corridor shelf or the driving shelf. The through shelf adopts pallet access mode, which is suitable for the storage of goods of small variety and large batch.

In addition to the cargo space close to the passage, as forklift trucks need to enter the shelf to access cargo, it is usually recommended that the single-side pickup should not exceed 7 cargo depth.

In order to improve the speed of forklift truck, the guide track can be selected according to the actual needs. Compared with the cargo shelf, the storage space of through shelf (driving shelf)

The utilization rate can be increased by more than 30%. The through shelf (driving shelf) is widely used in cold storage, food and tobacco industry.

Second: through-type shelf characteristics:

1. On the support rail, the pallets are stored in the depth direction, one after another, which makes high density storage possible.

2. Goods are accessed from the same side of the shelf, first stored, then taken, and then stored. Forklift trucks can easily enter the shelf and access goods in the middle without occupying multiple channels.

3. This kind of shelf is suitable for the bracket and bracket shelf which store large quantities and few varieties of through shelf (driving shelf) with integral stamping/rolling technology.

With strong bearing capacity, beautiful appearance of goods.

4. The through-type shelf is fully plugged and assembled, and the pillars are assembled. The total shelf depth in the wall area is generally better controlled within 5 pallets.

The total shelf depth in the middle area, which can enter and exit on both sides, is generally better controlled within 10 pallet depths to improve the efficiency and reliability of forklift truck access.

The stability of through-shelf system is weaker in all kinds of shelves, so shelves should not be too high, usually within 10 meters.

In addition, the system also needs to install a reinforcement device. This system has dense shelf arrangement and high space utilization.

It is suitable for storing small varieties and large quantities of similar goods. Goods can be stored and taken out from the same side or from one side to the other.
