[Name]: Fluent Shelf

Specification: Customizable

[Laminate]

[Material]: Steel

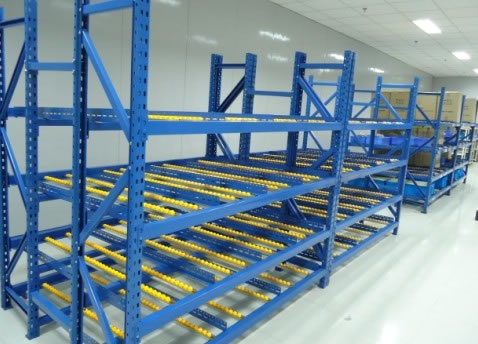

1. Structural characteristics of fluent shelves:

Structural characteristics of fluent shelves: fluent strips of fluent shelves are directly connected to the front and rear crossbeams and the intermediate support beams, and the crossbeams are directly attached to the pillars.

The inclination of fluidity bar installation depends on the size and weight of the container and the depth of the fluidity rack, usually taking 5%-9%. The bearing capacity of the fluent bar roller is 6 kg/piece.

When the goods are heavy, 3-4 fluent bars can be installed in a raceway. Usually a supporting beam is installed every 0.6m in the depth direction to increase the stiffness of the fluent strip.

When the raceway is long, the raceway can be separated by a separator. Brake pads should be installed at the receiving end to slow down the cargo and reduce the impact.

2. Storage advantages of fluent shelves:

The fluent rack uses rollers, aluminium alloy, sheet metal and other fluent bars, and uses the weight of the goods rack to stock from one side channel.

On the other side, the first-in-first-out (FIFO) is realized, and the storage is convenient, as well as a replenishment of multiple pickups. The storage efficiency of the fluent rack is high.

Suitable for short-term storage and selection of large quantities of goods.

Electronic tags can be distributed to realize easy management of goods. Commonly used sliding containers are turnover boxes, parts boxes and cartons, which are suitable for large quantities of goods and short-term storage and selection.

3. The scope of application of fluent shelves

Fluent shelves are widely used in manufacturing, commerce, distribution centers, assembly shops and warehouses with high frequencies of delivery.

It uses rollers, aluminium alloy, sheet metal and other fluent bars, and uses the self-weight of the bench to realize first-in-first-out (FIFO) with convenient storage. It is suitable for distribution centers on both sides of the assembly line and other places.
